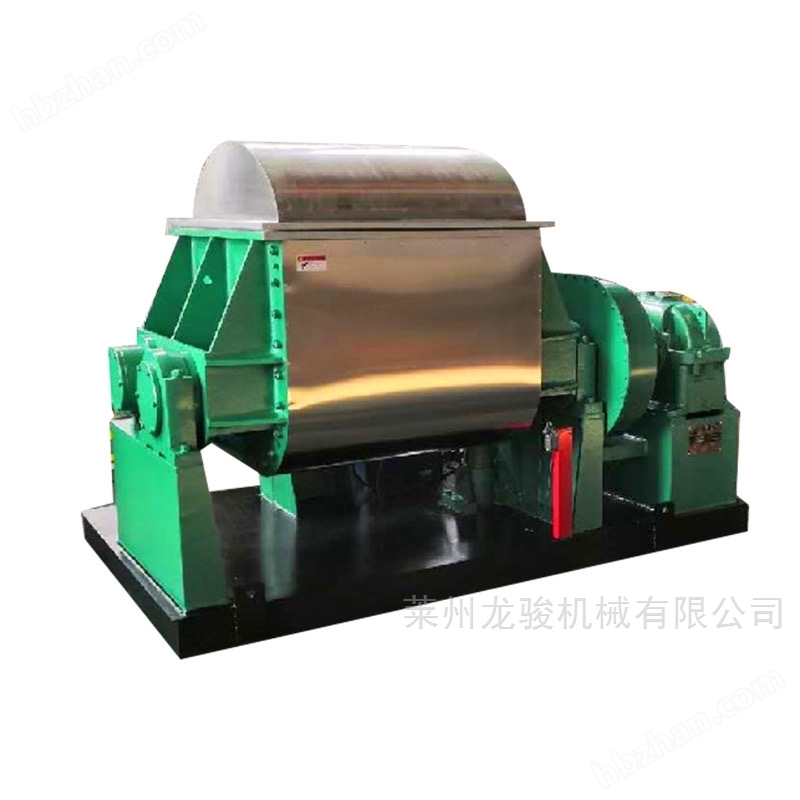

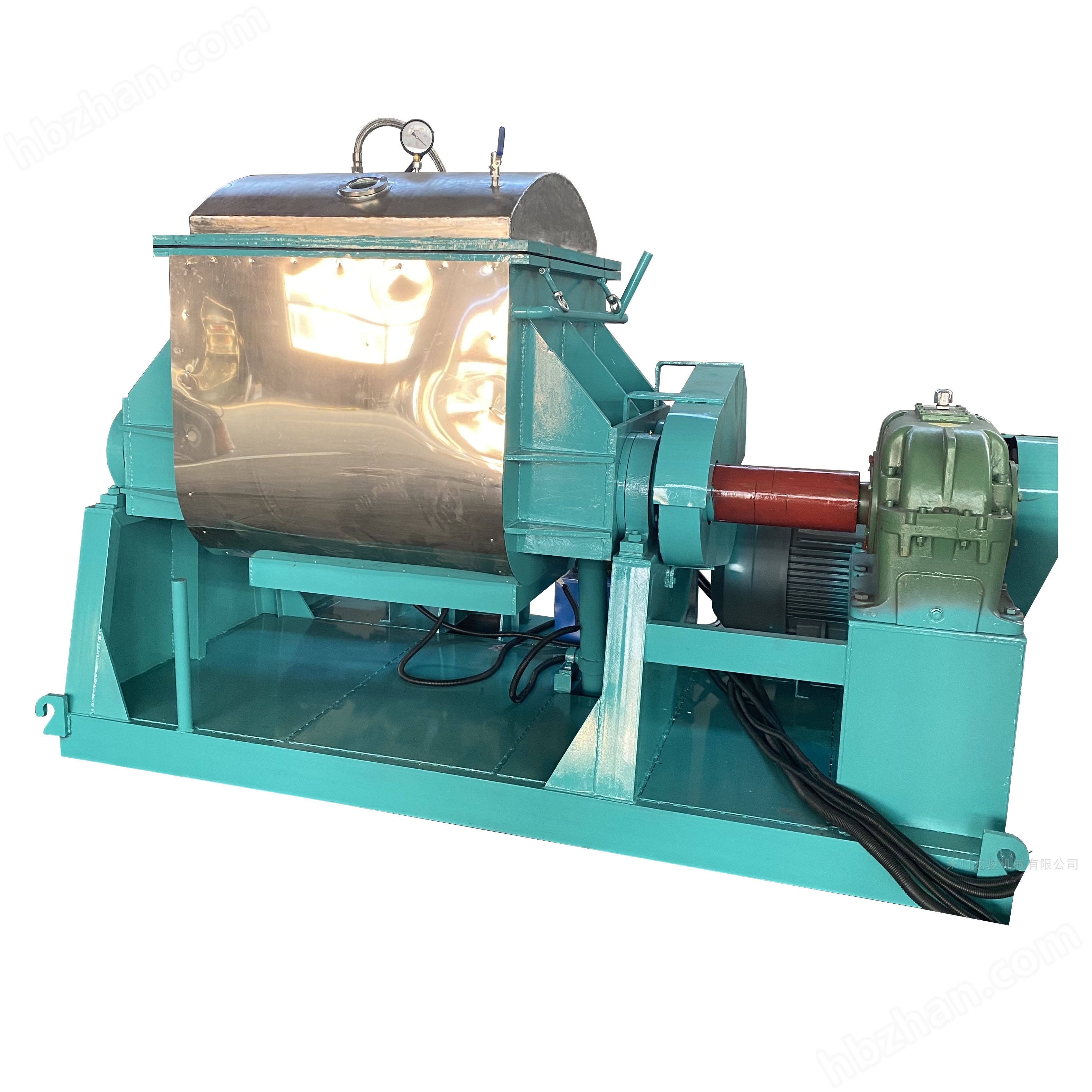

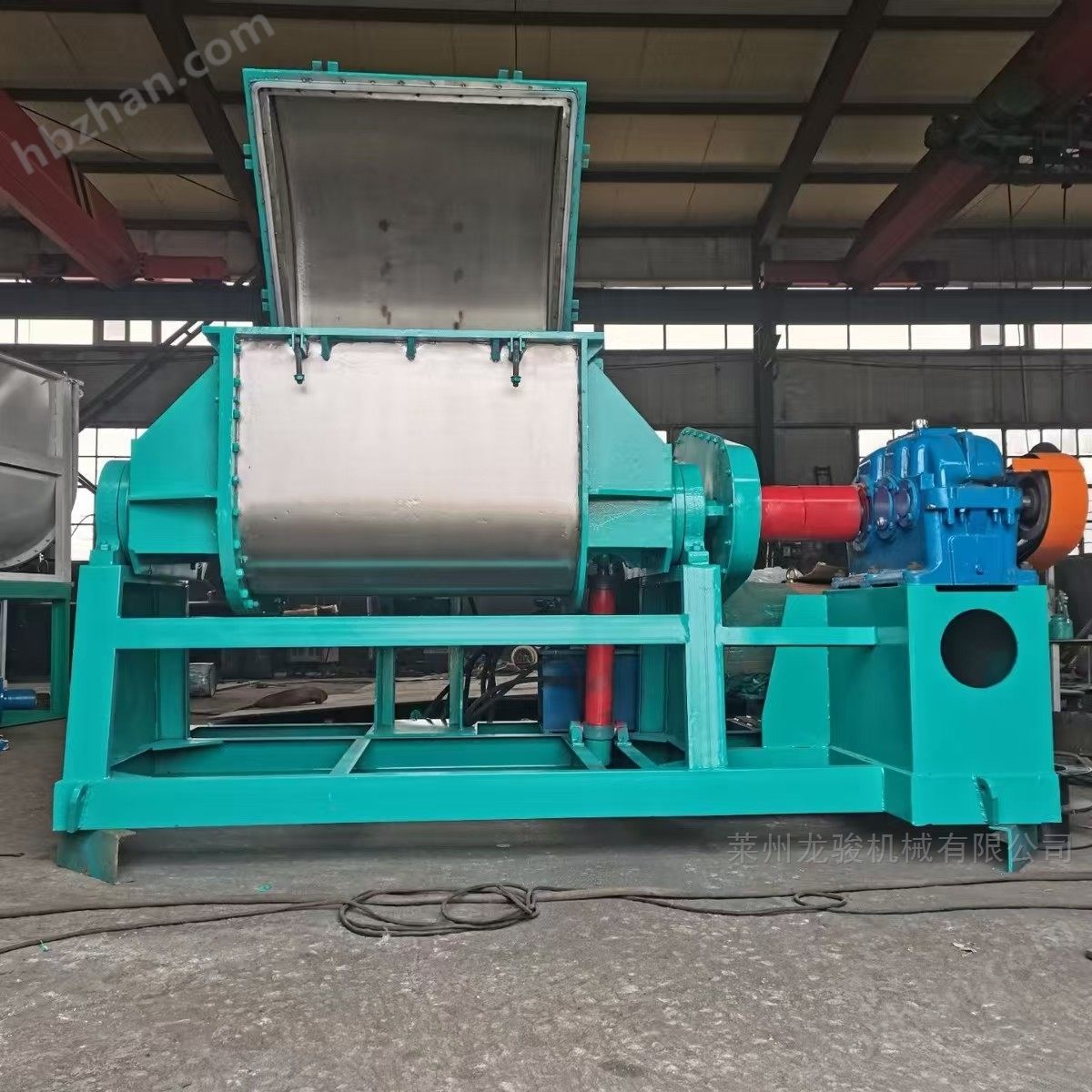

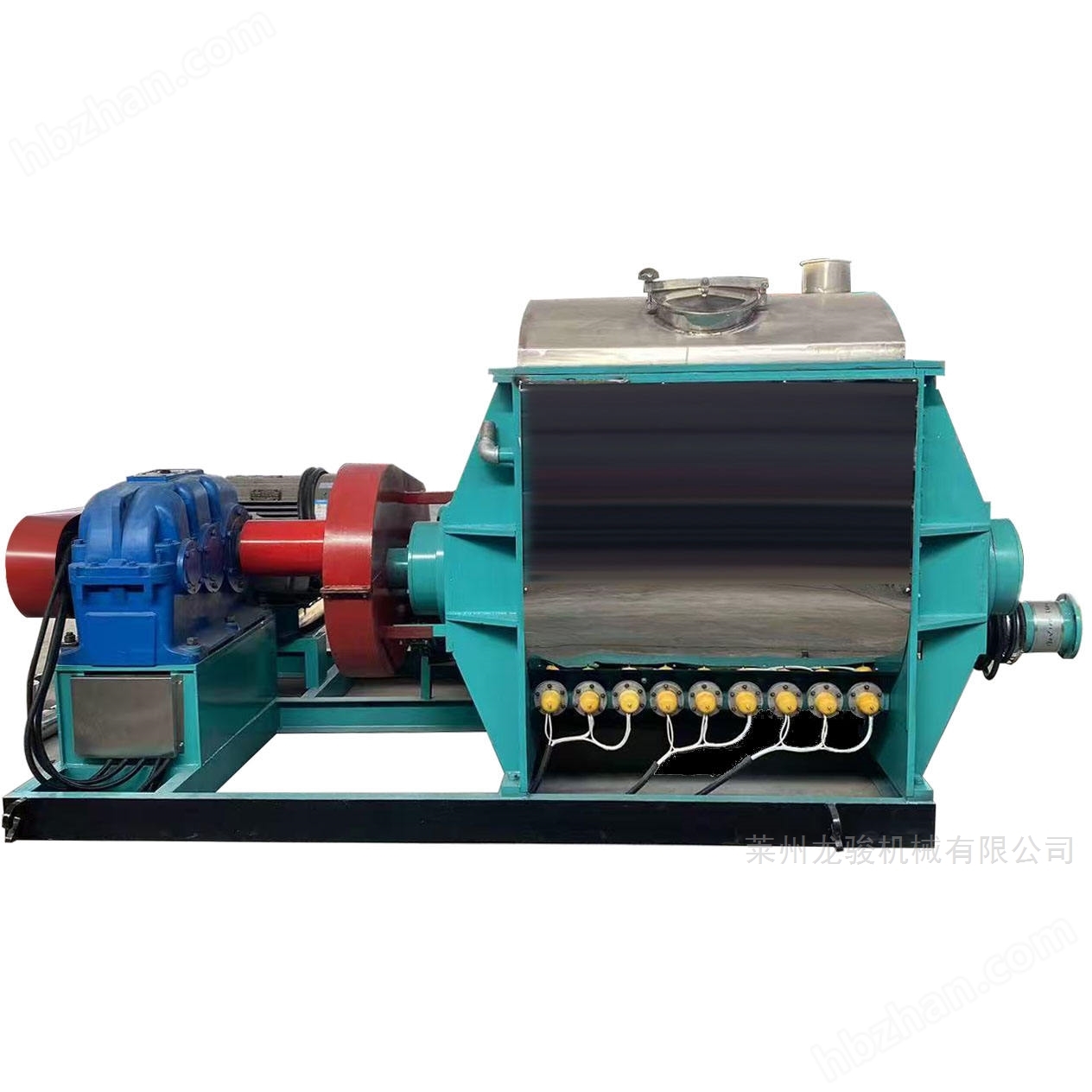

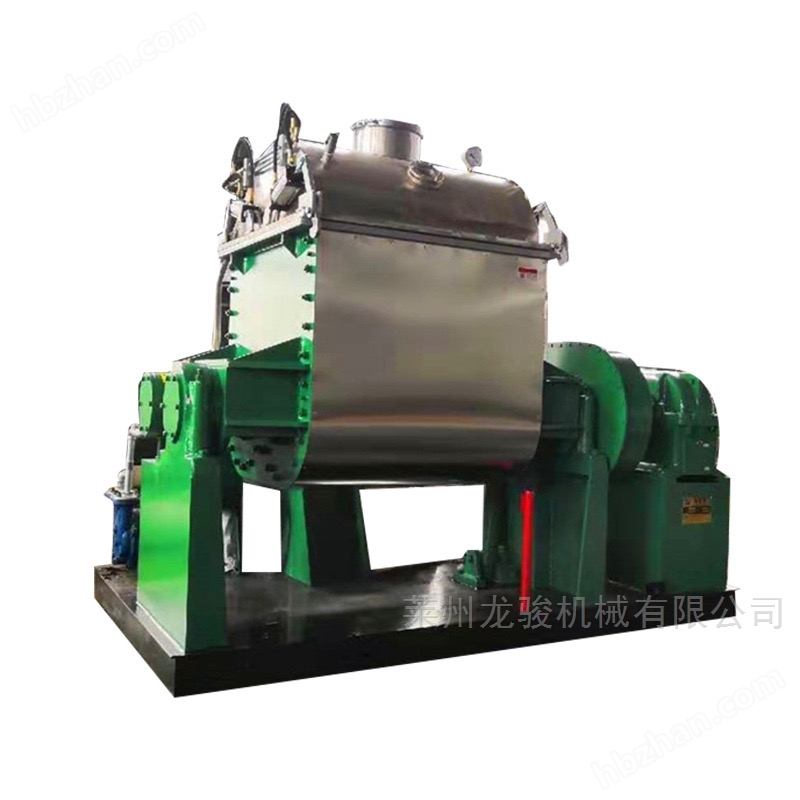

Z shaped blade kneading machineZ型捏合機雙臂捏合機（Double arm kneading mixer），又稱Z形捏合機，是一種用于高粘度物料混合的化工設備。設備由一對相向旋轉的Z形槳葉組成，通過剪切、拉伸、擠壓作用實現物料分散混合，主要應用于電池、油墨、顏料、染料、醫藥、樹脂、塑料、橡膠、化妝品等行業，并擴展至高粘度密封膠、硅橡膠、玻璃膠、口香糖、紙漿等領域
Z-shaped blade kneading machine Double arm kneading mixer, also known as Z-shaped kneading machine, is a chemical equipment used for mixing high viscosity materials. The equipment consists of a pair of Z-shaped blades that rotate in opposite directions, and achieves material dispersion and mixing through shearing, stretching, and squeezing. It is mainly used in industries such as batteries, inks, pigments, dyes, pharmaceuticals, resins, plastics, rubber, cosmetics, and has been extended to high viscosity sealants, silicone rubber, glass adhesives, chewing gum, pulp, and other fields

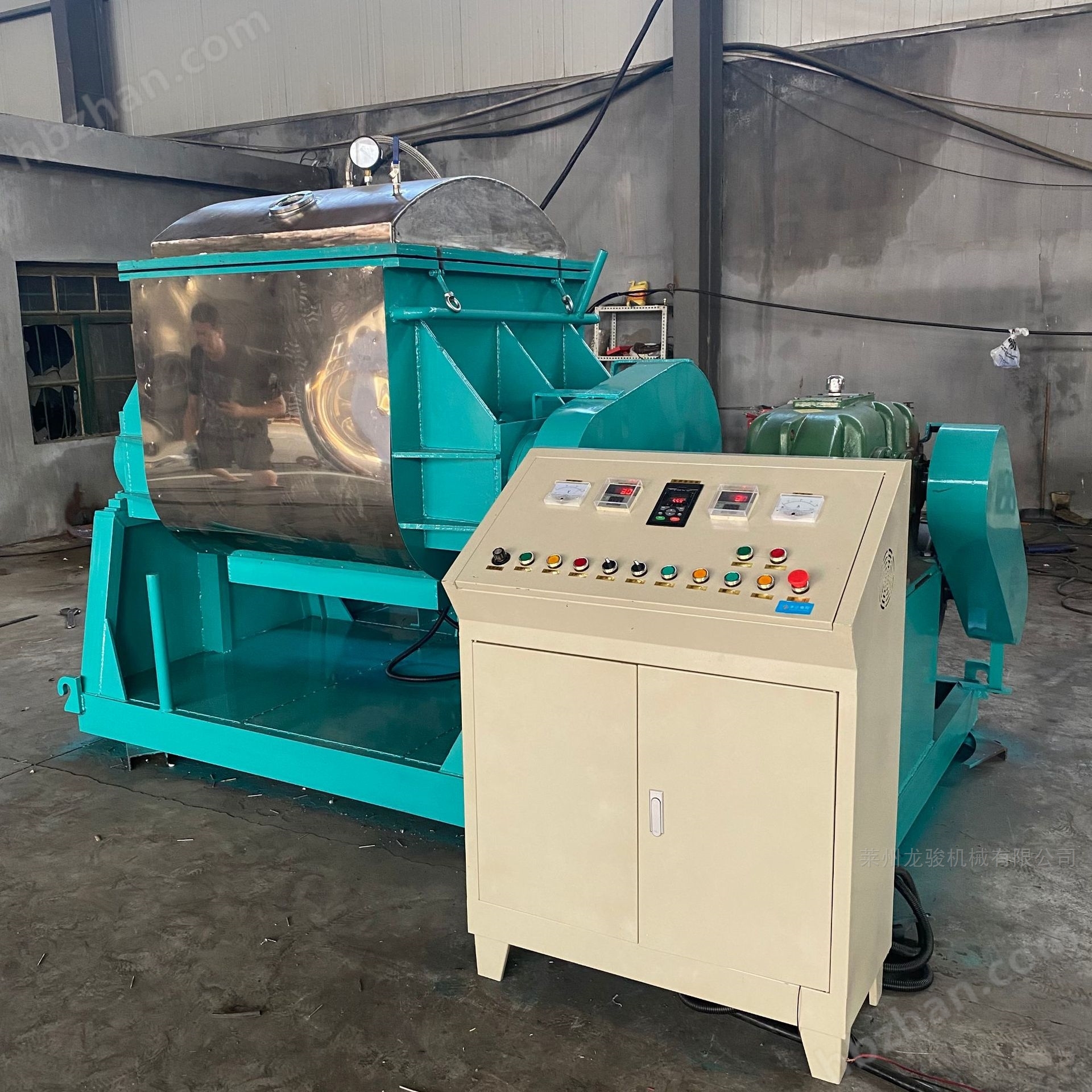

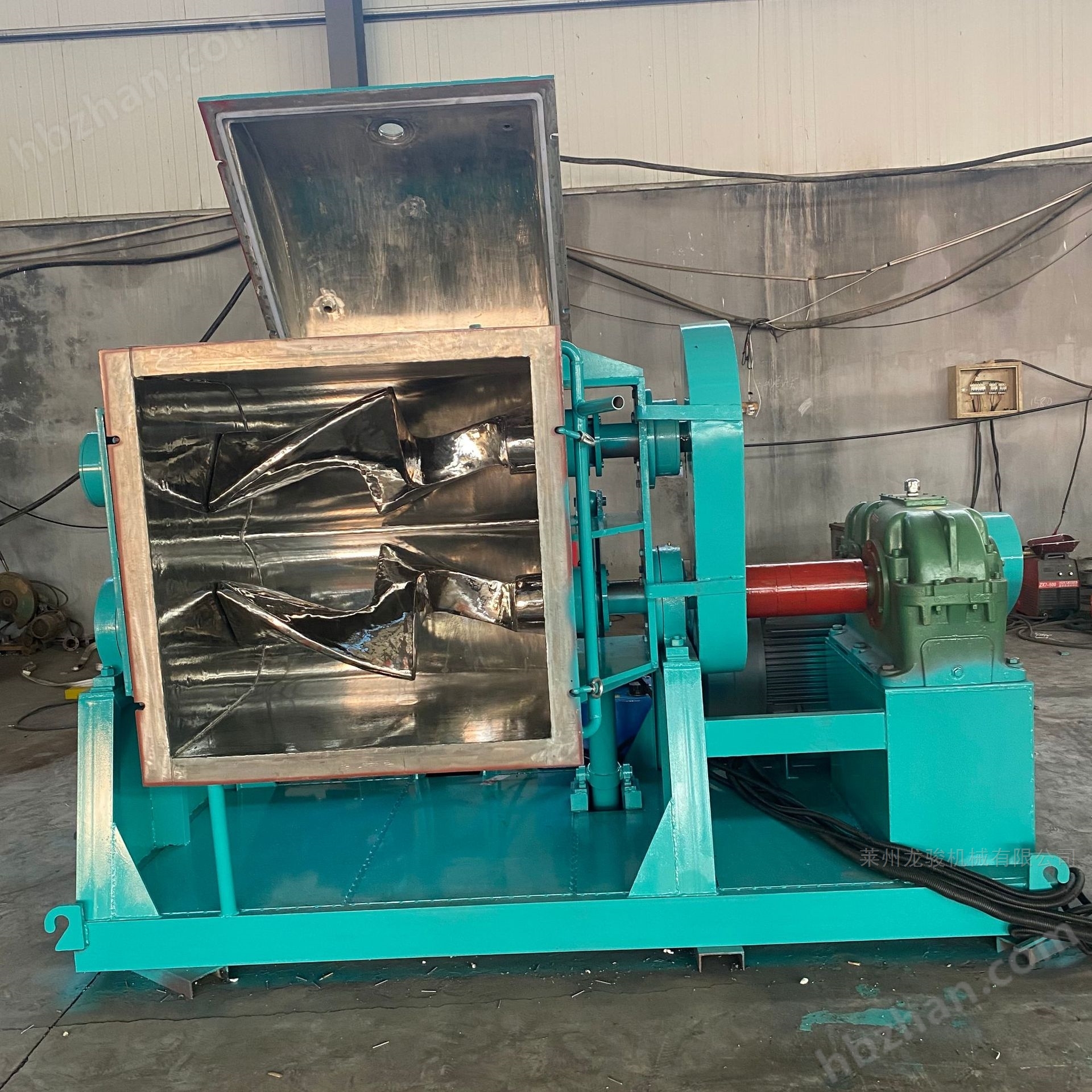

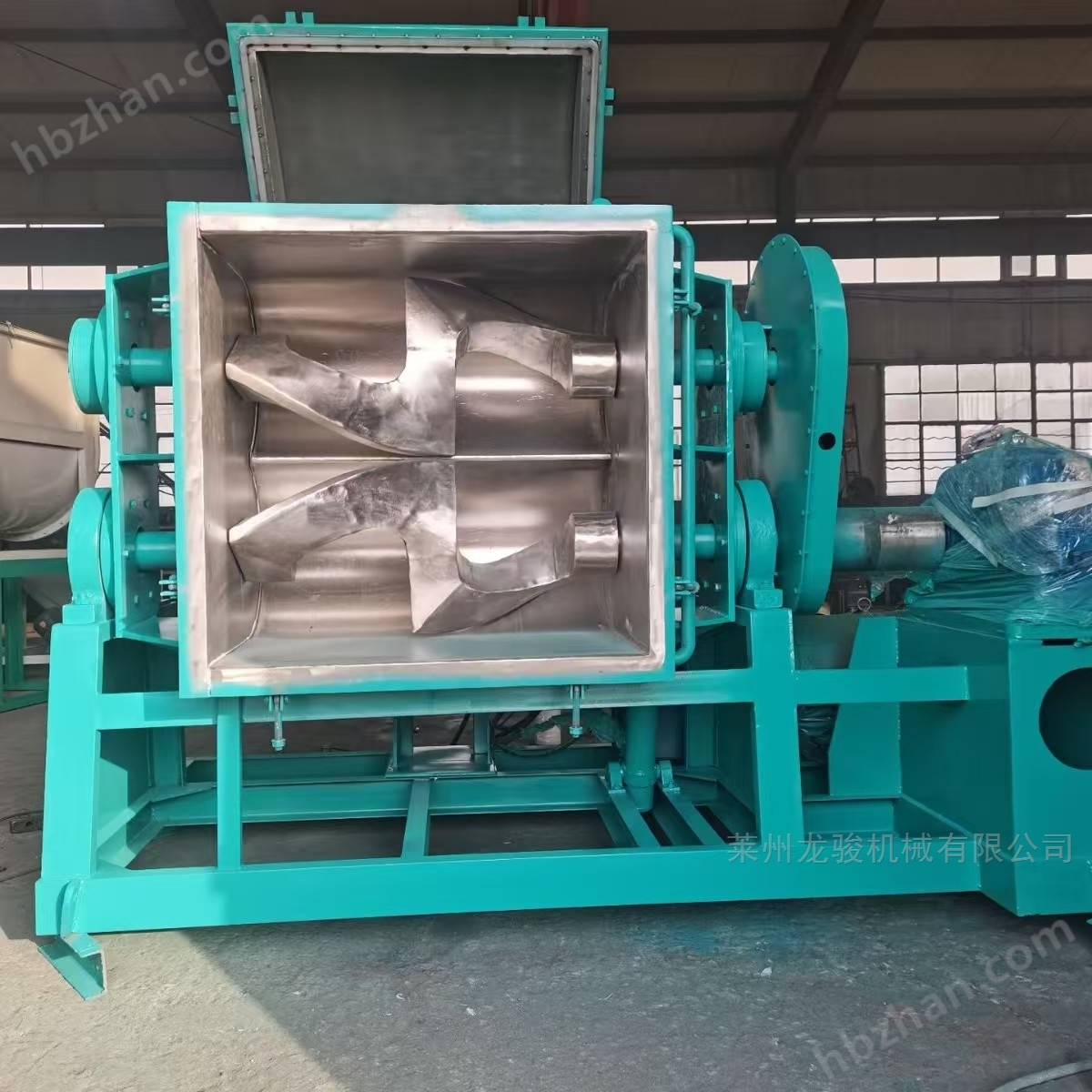

該設備兩葉片以約1.9:1轉速比運轉，與器壁間隙約1mm，可消除物料滯流區。按功能可分為普通型、壓力型、真空型、高溫型四類，調溫采用夾套、蒸汽、油加熱或水冷卻方式，出料包含液壓、翻缸傾倒、球閥及螺桿擠壓等形式 。缸體與槳葉采用不銹鋼材質，配備PLC控制系統實現溫度、時間、粘度數據的實時監控。傳動系統由電機、斜齒輪/硬齒面減速機構成，集成液壓、真空及電控系統，支持手動與自動操作模式。其功能涵蓋混煉、捏合、破碎、分散及物料重新聚合工藝。
雙臂捏合機可制成普通型、壓力型、真空型、高溫型四種，調溫形式采用夾套、蒸汽、油加熱、水冷卻等方法，采用液壓翻缸及啟蓋。出料方式有液壓、翻缸傾倒、球閥出料，螺桿擠壓等。并可通過PLC實時控制及記錄生產中的溫度、時間、粘度等相關數據。缸體及漿葉與物料接觸部分均采用不銹鋼制成，確保產品質量。
Z shaped blade kneading machineZ型捏合機作用：
二是推進劑制造的一個重要工序，其作用是各組分的均勻混合及各種添加劑的充分分散，通過溶劑對硝化棉的膨潤、溶解和攪拌翅對藥料的攪拌、捏合作用，制得均勻的可塑性藥團。
